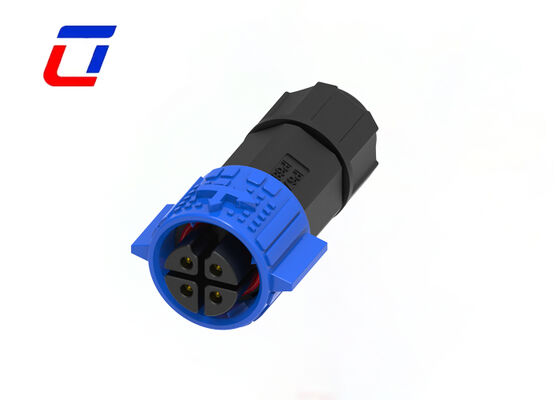

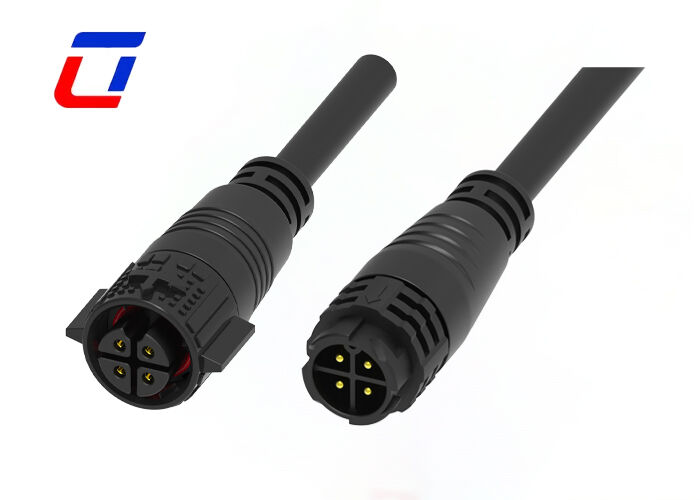

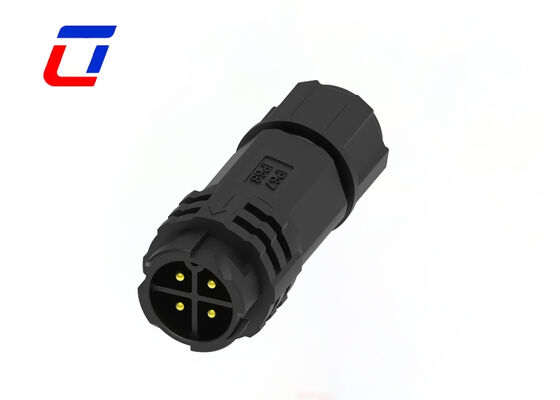

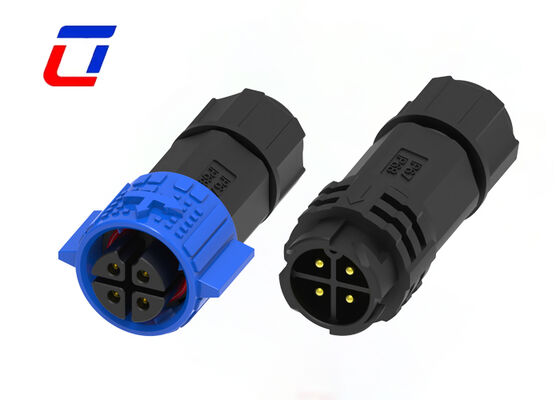

Name: IP67 Waterproof M19 4 Pin Male To Female Outdoor Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Casa Produtos Conector fêmea masculino impermeável

IP67 Waterproof M19 4 Pin Male To Female Outdoor Connector

Detalhes do produto:

Lugar de origem:	China
Marca:	Ulinkcon
Certificação:	CE/Rohs/TUV/UL
Número do modelo:	M19

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	Negociação
Preço:	Negociável
Detalhes da embalagem:	1Saco de plástico;2. Cartão;3.Segundo as exigências do cliente
Tempo de entrega:	3 a 6 dias úteis
Termos de pagamento:	T/T, D/P, L/C, D/A, , Western Union, MoneyGram
Habilidade da fonte:	100000 pares Montly

Contato

Descrição de produto detalhada

Alfinete:	4Pin	Classificação atual:	15a
Tensão nominal:	300V	Gênero:	Homem para mulher
Tipo de conector:	Conector rápido	Material:	nylon
Cor:	Vermelho Azul Branco Preto Amarelo	Classificação resistente a chamas:	UL94-V0
Destacar:	IP67 waterproof M19 connector , 4 pin male female connector , outdoor waterproof electrical connector

IP67 Waterproof M19 4 Pin Male To Female Outdoor Connector

Quick Description

The IP67 waterproof M19 4-pin male-to-female connector is exclusively engineered for outdoor application scenarios, acting as a reliable "link" for power and signal transmission in open-air environments. Designed with male-female docking structure for intuitive assembly, it perfectly fits outdoor lighting systems, security equipment, agricultural sensors, and landscape electronic devices, effectively solving transmission issues caused by rain, dew, dust, and sudden temperature changes.

The optimized 4-pin configuration expands its application scope: it supports simultaneous transmission of low-voltage power and dual-channel signals, making it suitable for smart outdoor devices like dimmable LED street lamps, motion-sensing security cameras, and soil moisture detectors. The standard M19 circular housing features a compact size, which can be seamlessly installed on lamp poles, equipment brackets, or outdoor junction boxes, without occupying excessive space while ensuring stable docking.

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters
Number of Poles	4Pin
Current Rating	15A max.
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Design Sketch

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: Do you support product customization?
A: Yes, customization is available for specifications, colors, logos, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.

3. Q: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

4. Q: What shipping methods do you offer? How long is the delivery time?
A: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3-7 working days for small parcels; 2) Air freight: 7-15 working days; 3) Sea freight: 20-45 working days. Delivery time varies by destination and shipping method.
