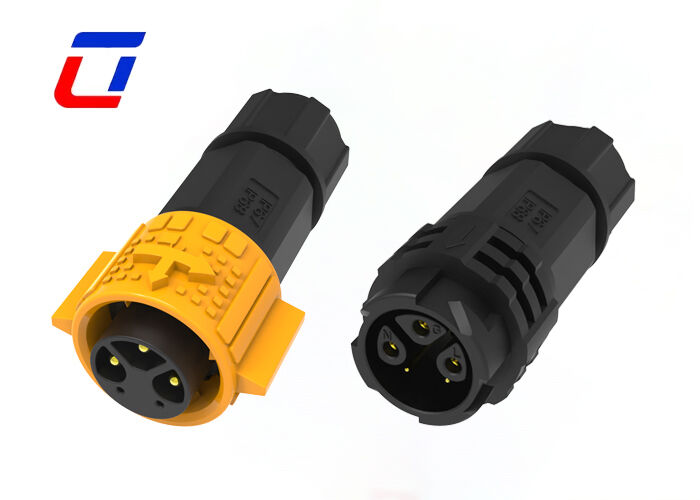

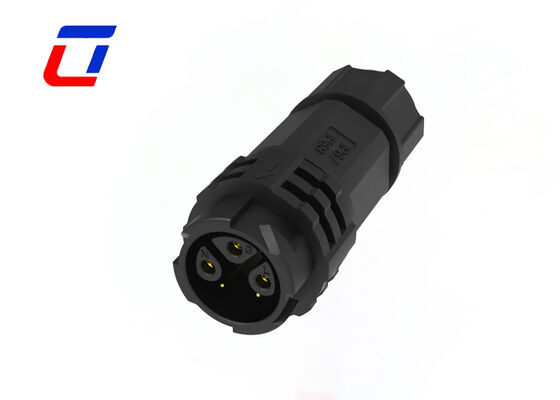

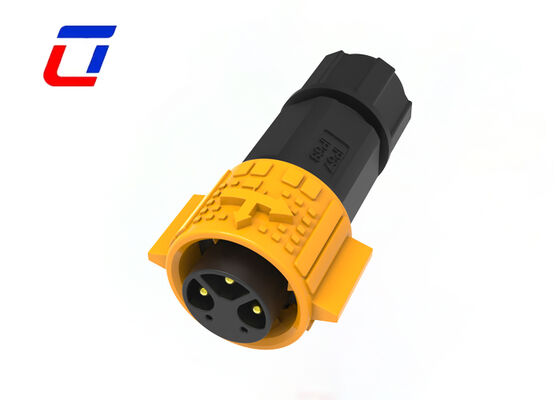

Name: Circular Multi Pin Connectors 3+2 Pin M19 15A Gold Plated Wire To Wire Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Casa Produtos Conector impermeável exterior

Circular Multi Pin Connectors 3+2 Pin M19 15A Gold Plated Wire To Wire Connectors

Detalhes do produto:

Lugar de origem:	China
Marca:	Ulinkcon
Certificação:	CE/Rohs
Número do modelo:	M19

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	Negociação
Preço:	Negociável
Detalhes da embalagem:	Caixa
Tempo de entrega:	5 a 8 dias úteis
Termos de pagamento:	T/T, D/A, D/P, MoneyGram, L/C
Habilidade da fonte:	100000 pares por mês

Contato

Descrição de produto detalhada

Número de pinos:	3+2PIN	Atual:	15A
Classificação à prova d'água:	IP67	Faixa de temperatura:	-40℃~+105℃
cor:	Preto Azul Branco Vermelho Amarelo	Faixa de diâmetro:	4.5-11
Destacar:	M19 waterproof wire connectors , 3+2 pin gold plated connectors , 15A outdoor wire connectors

Circular Multi Pin Connectors 3+2 Pin M19 15A Gold Plated Wire To Wire Connectors

Product Overview

Multi Pin Male Female Connector M19 3+2 Pin Wire To Wire Low Current Power Data Connector designed for reliable industrial applications.

Key Features

Gold-plated contact design for stable, durable conductive transmission
IP67 waterproof and dustproof protection for harsh outdoor environments
Wire-to-wire reinforced structure with anti-pulling and anti-vibration performance
Push lock quick release system for easy operation
Multiple pin configurations available: 2Pin, 3Pin, 4Pin, 5Pin for power; 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power/signal combined
Current rated 20A for continuous operation
Field assembly versions for wire-to-wire and wire-to-board applications
Cable assembly service and OEM/ODM support available

Technical Specifications

Product Type Features	Connector System: Cable-to-Cable Sealable: Yes Connector & Contact Terminates To: Wire & Cable Circular Connector Type: Plug, Receptacle Shell Type: Plastic Shell Product Type: Connector Kit
Electrical Characteristics	Number of Poles: 3+2 Current Rating: 15A max Voltage Rating: 300VAC max Durability Voltage: 1000VAC @ 60 s
Body Features	Shell Material: PA66 Circular Connector Insulation Material Type: Low Fire Hazard Thermoplastic Hermetically Sealed: Yes Entry Style: Side Environmental Protection Type: Elastomer Sealed, Hermetically Sealed O-Ring Material: Elastomer Sealed, Hermetically Sealed Environmental Protection: Yes
Usage Conditions	Operating Temperature Range: -40°C to 105°C IP Water Sealing Level: IP67 IP Dust Sealing Level: 6 Durability Rating: 250-251 cycles UL Flammability Rating: UL 94V-0

Application Industries

Communications Product Coding Machines Inventory Product Coding Inkjet Systems Solar Systems Industrial Inkjet Equipment Electric Power Equipment Laboratory Forensic & Pathology Equipment Communications Equipment Heavy Machinery

Production Dimensions

Technical Details

Frequently Asked Questions

What is rated voltage?

Rated voltage, also known as operating voltage, depends on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly below their rated voltage.

How to track my shipment?

Once goods are shipped, we provide tracking numbers and logistics platform links for real-time status updates. Contact our team for assistance.

Are your products certified? What certifications do you have?

All products are certified by RoHS, CE, and other international standards. Specific certifications (FCC, UL, etc.) can be provided upon request based on your target market requirements.
