Name: 50A M25 2 Pin Male Female Connector 500V Molded Cable Brass Gold-Plated Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Casa Produtos Conector de alimentação impermeável

50A M25 2 Pin Male Female Connector 500V Molded Cable Brass Gold-Plated Connector

Detalhes do produto:

Lugar de origem:	China
Marca:	Ulinkcon
Certificação:	CE/Rohs
Número do modelo:	M25

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	negociação
Preço:	Negociável
Detalhes da embalagem:	Carton de exportação de alta qualidade
Tempo de entrega:	3 a 6 dias úteis
Termos de pagamento:	T/T, D/A, D/P, MoneyGram, L/C
Habilidade da fonte:	100000 pares por mês

Contato

Descrição de produto detalhada

Número de pinos:	2 pinos	Atual:	50A
Classificação à prova d'água:	IP67	Faixa de temperatura:	-40℃~+105℃
Classificação resistente a chamas:	UL94-V0	Material de contato:	Latão
Destacar:	50A waterproof power connector , M25 2 pin brass connector , 500V gold-plated cable connector

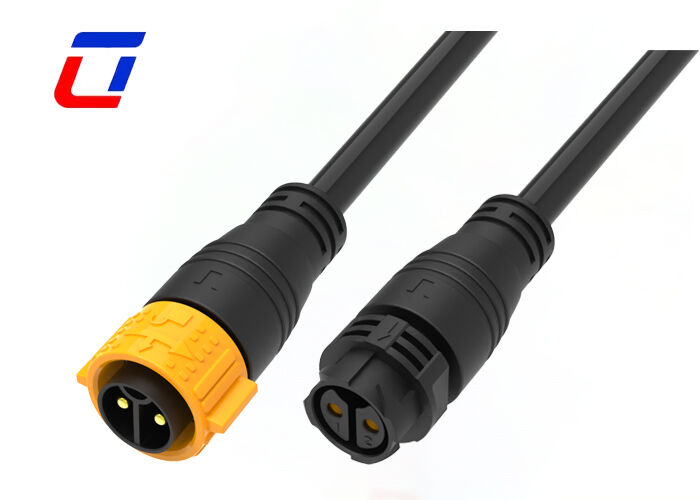

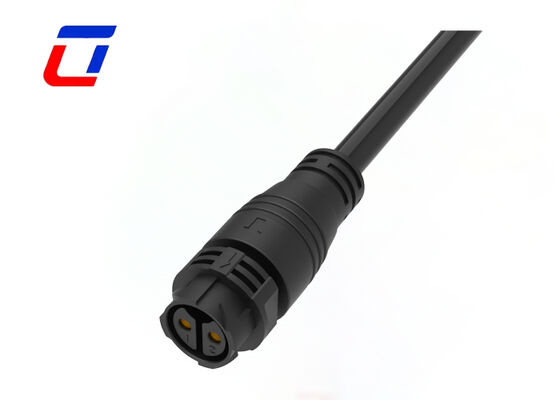

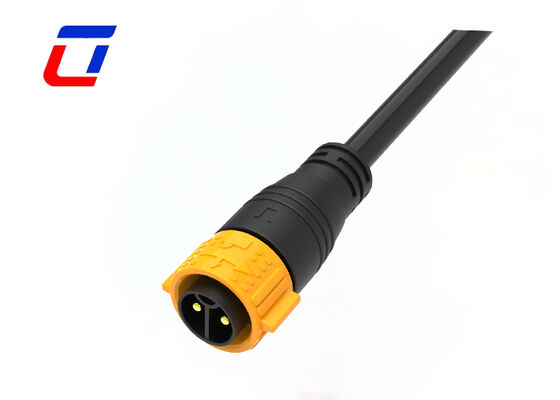

M25 2 Pin Waterproof Power Connector, 50A Male To Female Connectors

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin,3+2Pin,3+3Pin,3+9Pin,3+13Pin,5+2Pin and 2+20Pin are availabled
Field assembly version:both wire to wire and wire to board options
High current rated waterproof connector good choice up to 50A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Quick Details of 2Pin waterproof Panel Connector

Core Specification Parameters: Adopts 2Pin male-female plug-in design with a rated current of up to 50A, which can meet the power transmission needs of medium and high-power equipment; the rated voltage is 500V, suitable for various medium-voltage electrical scenarios, with a wide voltage adaptation range and strong stability.
High-Quality Material Selection: The core conductor of the connector is made of high-quality brass material, which has excellent electrical conductivity and good corrosion resistance, ensuring low loss during power transmission; the surface of the conductor is gold-plated, which further improves the conductivity efficiency, reduces contact resistance, enhances oxidation resistance, and extends the service life of the product.
Integrated Molding Process: Uses a molded cable design to firmly integrate the connector with the cable, featuring excellent sealing performance that can effectively prevent dust, water, and oil pollution, suitable for complex and harsh working environments; the molding process also improves the mechanical strength of the product, avoiding problems such as looseness and poor contact of traditional assembled connectors.
Precise Connection Design: The M25 specification interface has strong adaptability, the male and female plugs are smoothly inserted and removed, accurately positioned, and closely contacted, which can ensure the continuity and stability of power transmission; the contact resistance changes little during insertion and removal, and there will be no problems such as instantaneous power failure, making it suitable for equipment with high requirements for connection stability.
Widely Applicable Scenarios: Suitable for power transmission or signal connection in various scenarios such as industrial control equipment, new energy equipment, power tools, instruments and meters, and communication equipment; it can adapt to the use needs in different environments, whether it is an indoor industrial workshop or an outdoor simple operation scenario, it can perform stably.

Electrical Parameters
Number of Poles	2 Pin
Current Rating	50A max
Voltage Rating	500VAC max
Durability Voltage	2500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	50A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max.Cable Cross Section Area	0.5mm² ~ 6.0mm²

Production Dimension

More Technical Details

50A M25 2 Pin Male Female Connector 500V Molded Cable Brass Gold-Plated Connector 1

FAQ

Q1:Are your products certified? What certifications do you have?

A1:All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Q2:How to track my shipment?

A2: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real - time status online or contact our team for updates.

Q3: How can I get samples?

A3: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
