Name: M25 3+3 Pin Connector Male And Female Quick Plug And Socket Waterproof Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Casa Produtos Soquete impermeável da tomada

M25 3+3 Pin Connector Male And Female Quick Plug And Socket Waterproof Connectors

Detalhes do produto:

Lugar de origem:	China
Marca:	Ulinkcon
Certificação:	CE/Rohs
Número do modelo:	M25

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	negociação
Preço:	Negociável
Detalhes da embalagem:	Caixa
Tempo de entrega:	5 a 8 dias úteis
Termos de pagamento:	T/T, D/A, D/P, MoneyGram, L/C
Habilidade da fonte:	100000 pares por mês

Contato

Descrição de produto detalhada

Número de pinos:	3+3PIN	Classificação à prova d'água:	IP67
Atual:	15A	Faixa de temperatura:	-40℃~+105℃
Material:	Nylon	Tipo:	Tomada macho fêmea
Nível de proteção:	IP67
Destacar:	M25 waterproof plug connector , 3+3 pin quick socket , waterproof male female connector

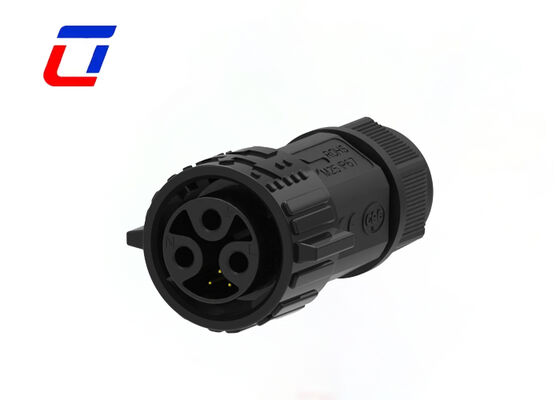

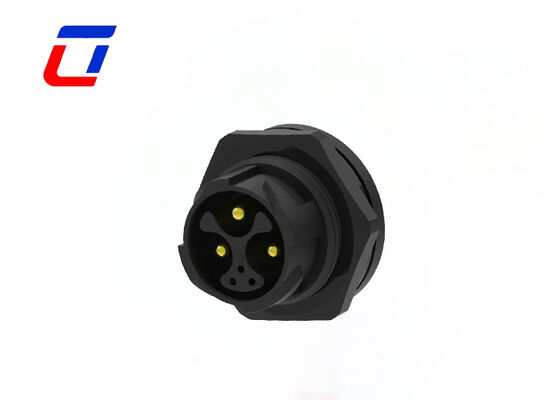

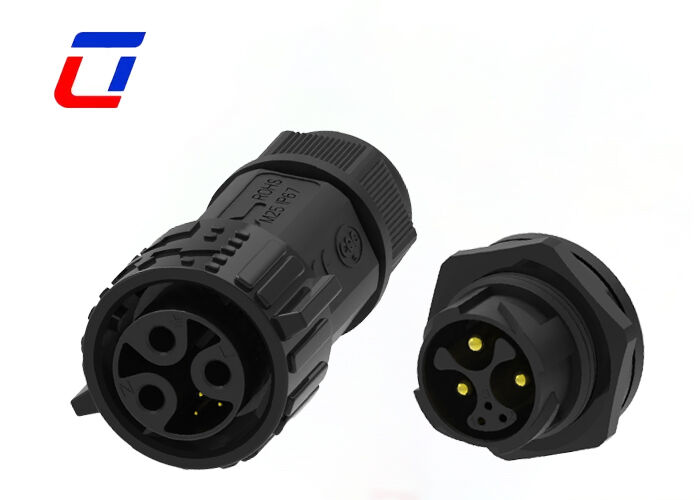

3+3 Pin M25 Plug And Socket Connector IP67 Quick Lock Signal Power Connectors

Waterproof Connector M25 3+3 Pin IP67 Male Female Quick Lock Plug Socket

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Technical Specifications

Product Type Features	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Configuration Features	3+3 positions, 3 signal positions, contacts preloaded
Electrical Characteristics	600V max. (AC/DC)
Body Features	PA66 shell material, low fire hazard thermoplastic, elastomer sealed, side entry style
Contact Features	15A max. current rating, pin-socket contact type
Mechanical Attachment	Cable mount (free-hanging), keyed mating alignment, with mating retention
Dimensions	Wire size: 20AWG, 18AWG, 16AWG, 14AWG
Usage Conditions	Operating temperature: -40°C to 105°C, IP67 protection level
Industry Standards	UL 94V-0 flammability rating

Key Advantages

3+3 Pin Separated Core Specifications: Adopts a 3+3 Pin (3-pin signal + 3-pin power) separated design, realizing independent operation of signal transmission and power supply to avoid mutual interference; the interface specification is M25 standard, using a plug-and-socket matching structure with precise pin positioning, adapting to the needs of various equipment that require simultaneous signal and power transmission, with strong versatility.

IP67 High-Level Protection Performance: Maintains IP67 professional protection level, which can achieve complete dustproof and 30-minute waterproof immersion in 1-meter water depth, effectively resisting the erosion of outdoor rain, sand, oil stains and humid environments; the shell adopts an integrated sealed structure with a custom waterproof rubber ring, providing stable protection for signal and power connections in complex environments and reducing failure risks.

Quick Lock Efficient Locking Design: Equipped with a quick lock mechanism, the plug and socket can be firmly locked with a light push after docking, with convenient operation and clear locking feedback, which can effectively resist connection loss caused by vibration and pulling; the unlocking process is simple and labor-saving without additional tools, greatly improving the operation efficiency of equipment installation and maintenance.

Weather-Resistant Materials and Dual-Channel Transmission Stability: The conductor is made of high-purity oxygen-free copper, and the surface is gold-plated and anti-oxidation treated, which not only ensures low loss of power transmission but also ensures clear and interference-free signal transmission; the shell is made of UV-resistant and impact-resistant engineering plastics, adapting to complex environments such as outdoor sun and rain and industrial workshops, and has excellent insulation performance to eliminate potential safety hazards such as electric leakage and signal leakage.

Diversified Signal and Power Adaptation Scenarios: Widely used in scenarios that require simultaneous signal and power transmission, such as industrial automation control, security monitoring equipment, instruments and meters, new energy auxiliary equipment, and medical instruments; it can adapt to the dual-channel connection needs of small and medium-power equipment, providing stable and reliable connection support for both indoor precision instruments and outdoor operation equipment.

Application Industries

Communications Application Product coding machines Inventory product coding Inkjet systems Solar System Industrial inkjet equipment Electric power equipment Laboratory forensic & pathology equipment Communications equipment Heavy machinery

Production Dimension

More Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2: Are you a factory or trading company?

A2: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

Q3: How to track my shipment?

A3: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.
