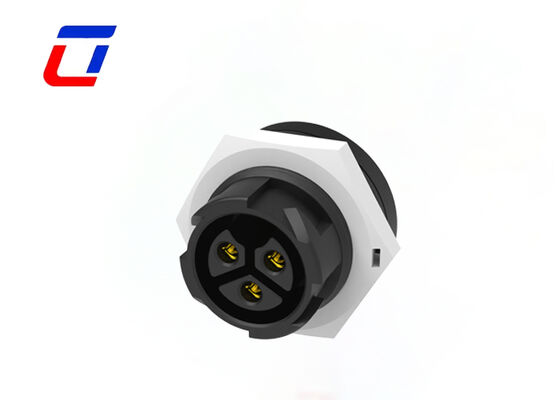

Name: 3 Pin Waterproof Bulkhead Electrical Connector M19 Panel Mount Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Casa Produtos Soquete impermeável da tomada

3 Pin Waterproof Bulkhead Electrical Connector M19 Panel Mount Connector

Detalhes do produto:

Lugar de origem:	China
Marca:	Ulinkcon
Certificação:	CE/Rohs/TUV/UL
Número do modelo:	M19

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	Negociação
Preço:	Negociável
Detalhes da embalagem:	1. Saco plástico; 2. Caixa; 3. Conforme as necessidades do cliente
Tempo de entrega:	3 a 6 dias úteis
Termos de pagamento:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Habilidade da fonte:	100.000 pares mensais

Contato

Descrição de produto detalhada

Classificação atual:	20A	Material:	PA66 e latão estanhado
Cor:	Branco Azul Vermelho Preto Amarelo	Tensão nominal:	300 V
Classificação resistente a chamas:	UL94-V0	Tipo:	fio a embarcar
Destacar:	3 pin waterproof panel mount connector , M19 waterproof bulkhead electrical connector , waterproof plug socket with M19 connector

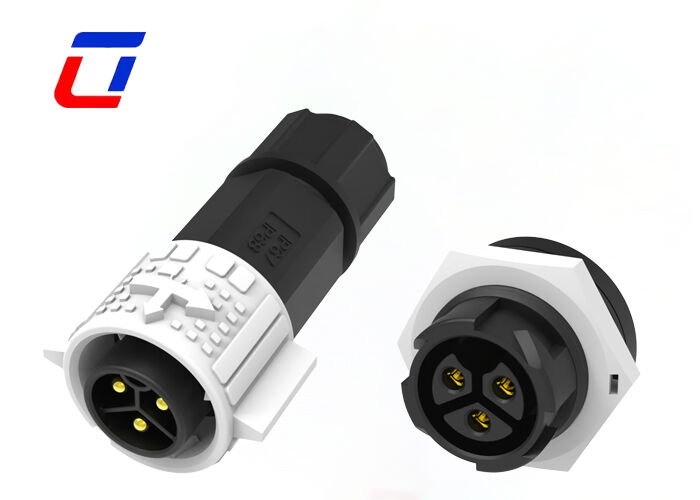

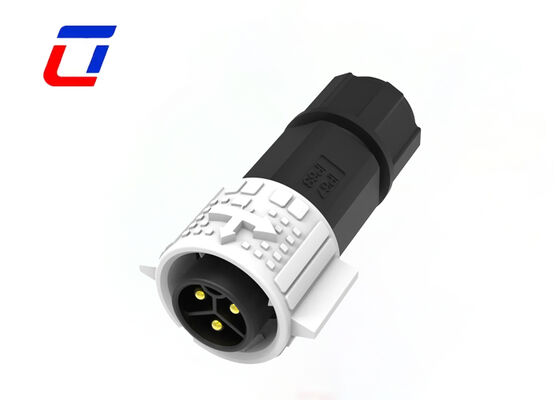

M19 3 Pin 300V Waterproof Cable Connector Quick Lock For Power

Main Features

Item Name : M19 Waterproof Cable Connector
Specifications : Straight male-female mating, elbow male-female mating, front-mounted wire -to- board, rear-mounted wire -to-board,integrated injection molding
Coupling way: Self-locking
Pins number :2-22 pins
Plug : Assembly type and Injection type available
Socket: Front Mount, Back Mount, PCB Mount
Waterproof grade: IP67/ IP68
Connector type :Assembly lock screw；Assembly welding；Injection molding with cable
Wire gauge: 1.0-6.0mm² (18AWG-10AWG)
Wiring range Assembled: 6. 0mm~16mm；Molding 6. 0mm~16.5 mm
Durability :3000 times
Applicabletemperature: -40℃~105℃

Quick Description

This circular waterproof cable connector is engineered exclusively for harsh outdoor environments, designed to deliver stable, safe, and reliable 3 pin power transmission via precise structural design and premium material selection.

Boasting a 20A rated current and M19 standard interface, it perfectly matches 3 pin power supply systems, ensuring steady current transmission with minimal power loss. It meets high-level waterproof standards, resisting rain, spray, humidity, dust, oil, and corrosion. Even in open-air, construction sites, mines, docks, and other complex settings, it maintains connection tightness and safety, eliminating short circuits, electric leakage, and other environmental-induced hazards.

Constructed with high-strength engineering plastic housing and quality conductive terminals, the housing offers excellent impact resistance, aging resistance, and wide temperature adaptability (-40℃ to 105℃), avoiding deformation or cracking after long-term use. The high-conductivity copper terminals undergo special plating to reduce contact resistance, enhance conductivity and oxidation resistance, and extend product lifespan.

Electrical Parameters
Number of Poles	3 pin
Current Rating	20A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

FAQ

1. Q: What shipping methods do you offer? How long is the delivery time?

A:We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3-7 working days for small parcels; 2) Air freight: 7-15 working days; 3) Sea freight: 20-45 working days. Delivery time varies by destination and shipping method.

2. Are your products certified? What certifications do you have?

A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

3. Q: Can I have custom label?

A:Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.
