Name: 20A M19 5 Pin Water Tight Electrical Connector Quick Lock Circular Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Casa Produtos Conector de alimentação impermeável

20A M19 5 Pin Water Tight Electrical Connector Quick Lock Circular Connector

Detalhes do produto:

Lugar de origem:	China
Marca:	Ulinkcon
Certificação:	CE/Rohs/TUV/UL
Número do modelo:	M19

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	Negociação
Preço:	Negociável
Detalhes da embalagem:	1. Saco plástico; 2. Caixa; 3. Conforme as necessidades do cliente
Tempo de entrega:	3 a 6 dias úteis
Termos de pagamento:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Habilidade da fonte:	100.000 pares mensais

Contato

Descrição de produto detalhada

Tensão nominal:	300 V	Alfinete:	5 pinos
Classificação resistente a chamas:	UL94-V0	Temperatura operacional:	-40℃~+105℃
Material:	Nylon	Nível de proteção:	IP67
Destacar:	20A waterproof electrical connector , M19 quick lock connector , 5 pin circular power connector

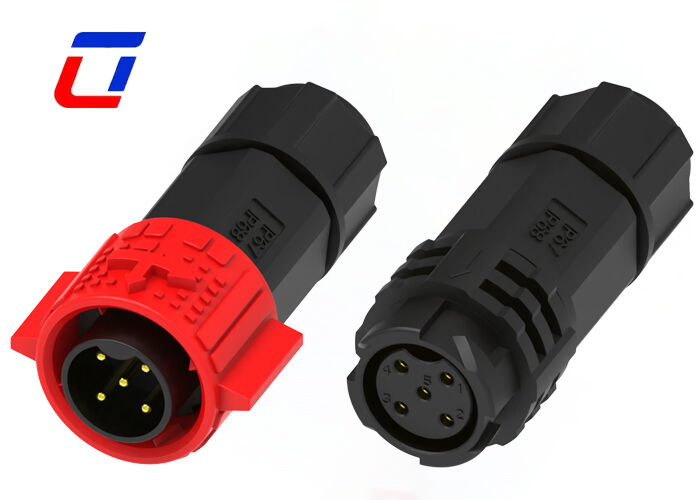

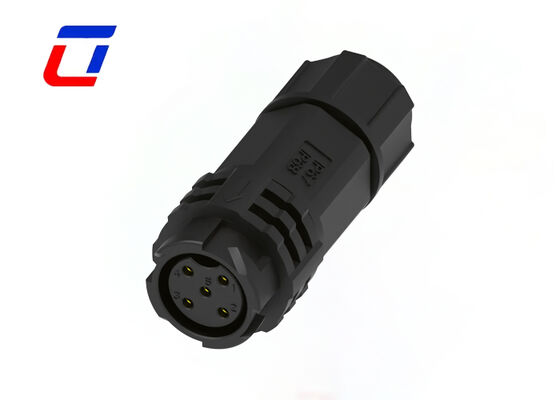

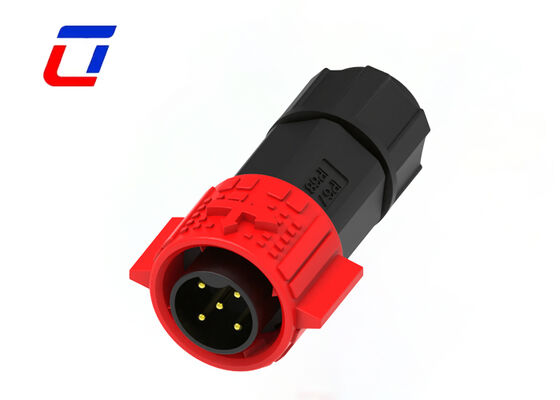

20A M19 5 Pin Water Tight Electrical Connector Quick Lock Circular Connector

Product Overview

5 Pin Circular M19 PA66 300V Male To Female Waterproof Connector

Key Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Technical Description

Built with high-strength PA66 material, this M19 5-pin circular connector is capable of supporting 300V high-voltage power transmission. The male-female docking structure, along with its reliable waterproof performance, makes it a go-to choice for power connection requirements in various scenarios.

The PA66 shell is highly resistant to weather and aging, and the smooth plugging action between male and female ends ensures that both safety and practicality are well-addressed. Copper pins with excellent conductivity reduce transmission loss significantly, and the 300V rated voltage makes it compatible with different types of high-voltage equipment.

With an IP67 waterproof and dustproof rating, it is unaffected by rain and dust. The PA66 housing resists high temperatures and corrosion, and together with its enhanced insulation properties, it provides double protection against high-voltage risks.

The male-to-female structural design features foolproof alignment to prevent wrong insertion. The PA66 housing can work stably in temperatures ranging from -40℃ to 105℃, making it suitable for harsh operating environments. The tail part is compatible with 0.5-2.5mm² wires, and the integrated sealing and locking functions improve the reliability of the connection.

Electrical Specifications

Parameter	Value
Number of Poles	5Pin
Current Rating	20A max.
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.

Technical Parameters

Parameter	Value
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Value
Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²
