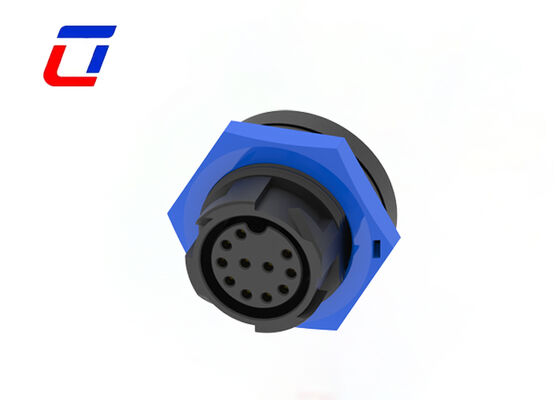

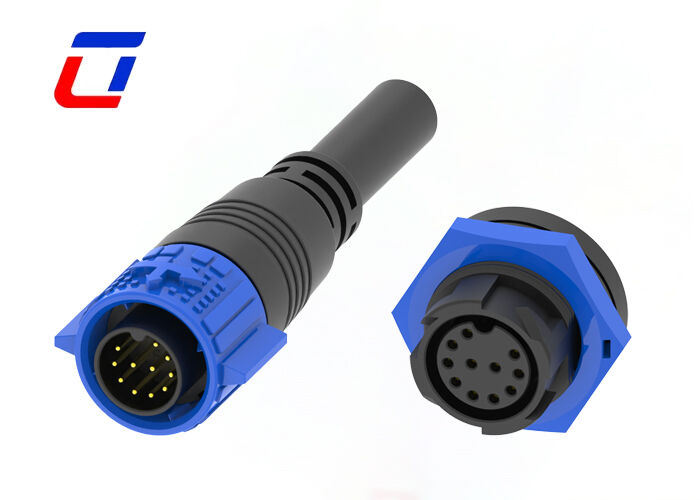

M19 11 Pin Waterproof 300 Volt Cable Connectors
Professional Landscape Lighting Wire Connectors
Main Features
- Push lock quick release system for easy installation
- Multiple pin configurations: 2Pin, 3Pin, 4Pin, 5Pin for Power
- Combined power and signal options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin, 2+20Pin
- Signal configurations: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin, 18Pin
- Field assembly versions: wire to wire and wire to board options
- 5A current rating for continuous operation
- Cable assembly service and custom solutions available
- OEM/ODM services welcome
Core Specifications & Compatibility
Featuring an 11-pin precision layout specifically designed for landscape lighting equipment,
these connectors ensure stable transmission of lighting control signals and balanced power supply.
The M19 standard circular interface precisely matches landscape lighting cable specifications
with accurate plug-in alignment and strong compatibility for quick docking of cables and lighting equipment.
High-Level Waterproof Protection
Rated IP67 for waterproof and dustproof performance, these connectors feature a fully enclosed
sealing structure with waterproof rubber ring design. They effectively resist outdoor rain,
condensation, and soil moisture erosion, operating reliably in long-term outdoor or humid environments
while eliminating short circuit and electric leakage risks.
Quick-Release & User-Friendly Design
Equipped with a quick-release self-locking structure for tool-free plugging and disconnection,
significantly boosting installation efficiency and facilitating maintenance, inspection, and
position adjustments. Once connected, they lock firmly to resist external impacts and prevent accidental detachment.
Durable Material & Craftsmanship
Housing made from weather-resistant PA66 engineering plastic with excellent UV resistance,
high and low temperature tolerance (-40℃ to +105℃), and anti-aging performance.
Pins feature tin-plated anti-oxidation technology with low contact resistance and stable
electrical conductivity for extended service life in landscape lighting systems.
| Electrical Parameters |
| Number of Poles |
11Pin |
| Current Rating |
5A max |
| Voltage Rating |
300VAC max |
| Durability Voltage |
1500VAC @ 60 s |
| Technical Parameters |
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C to +105°C |
| IP Class |
IP67 (1m / 30min) when mated |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
| Operation Parameters |
| Voltage Rating |
300VAC max |
| Current Rating |
5A max |
| Min Wire Size OD |
3.0mm - 6.0mm |
| Max Wire Size OD |
8.0mm - 10.0mm |
| Max Cable Cross Section Area |
0.5mm² - 2.5mm² |
Application Industries
- Growth Lights
- Communications Equipment
- Product Coding Machines
- Inventory Product Coding Systems
- Inkjet Systems
- Solar Systems
- Industrial Inkjet Equipment
- Electric Power Equipment
- Laboratory Forensic & Pathology Equipment
- Communications Equipment
- Heavy Machinery
Product Design & Specifications
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.
Q: How to buy your products?
A: You need to provide the following specifications:
• Current Rating and Number of Contacts
• Assembly style
• Cable Wire gauge
• Cable Length and Material
Q: How can I get samples?
A: We are pleased to offer samples. The freight cost should be covered by the customer.
Please provide your courier account number and detailed address, and we will dispatch samples immediately.
