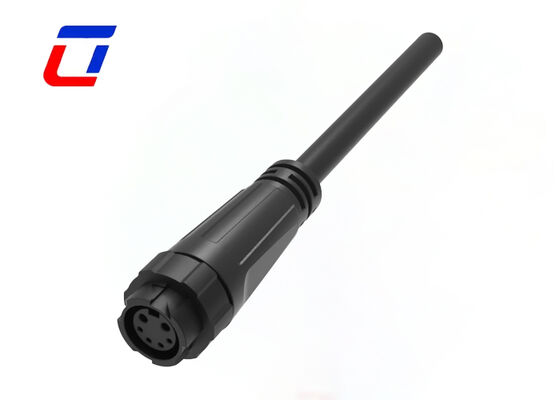

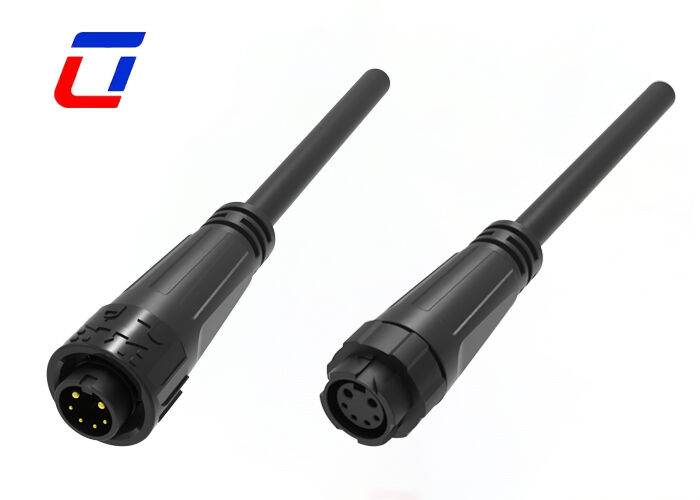

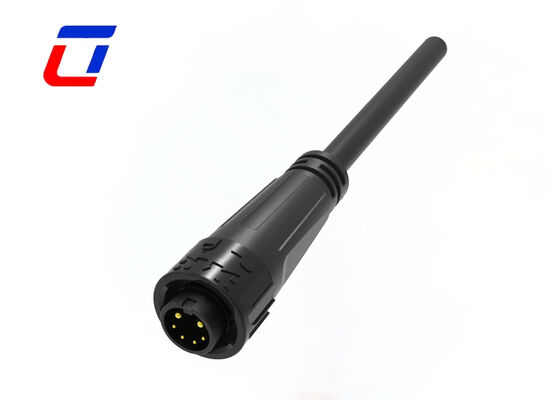

Name: M16 15A+5A Small Waterproof Wire Connectors Quick Release IP67 Connector 2+4 Pin
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Casa Produtos Multi Pin Connectors Waterproof

M16 15A+5A Small Waterproof Wire Connectors Quick Release IP67 Connector 2+4 Pin

Detalhes do produto:

Lugar de origem:	China
Marca:	Ulinkcon
Certificação:	CE/Rohs/TUV/UL
Número do modelo:	M16

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	Negociação
Preço:	Negociável
Detalhes da embalagem:	1. Saco plástico; 2. Caixa; 3. Conforme as necessidades do cliente
Tempo de entrega:	3 a 6 dias úteis
Termos de pagamento:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Habilidade da fonte:	100.000 pares mensais

Contato

Descrição de produto detalhada

Tipo:	conector à prova d'água	Alfinete:	2+4 pinos
Material:	PA66,UL94-V0	Nível à prova d'água:	IP67
Temperatura operacional:	-40℃-+105℃	Material de contato:	Latão banhado a ouro
Destacar:	M16 waterproof wire connector , 15A+5A quick release connector , IP67 2+4 pin connector

M16 15A+5A Small Waterproof Wire Connectors Quick Release IP67 Connector 2+4 Pin

PA66 Plastic 2+4 Multi Pin IP67 Waterproof Connector M16

Application Industries

Growth Lights
Communications Application
Product Coding Machines
Inventory Product Coding
Inkjet Systems
Solar System
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Product Overview

M16 2+4 Pin Small Waterproof Quick-Release Connector (IP67) is specifically designed for integrated power and signal transmission applications. With dual-specification capability supporting 15A high-current supply and 5A signal transmission, this connector provides reliable connectivity for small devices operating in complex environments. Compliant with M16 interface standards, it features a compact structural design that balances installation flexibility with connection stability, making it ideal for equipment with space constraints.

The innovative 2+4 pin functional zoning layout enables independent transmission of power and signal without interference: the 2-pin channel carries 15A rated current for stable power supply to small devices; the 4-pin channel handles 5A signal interaction, ensuring accurate transmission of control commands and data. The quick-release mechanism allows tool-free plug-and-pull operations with automatic locking after insertion, effectively resisting vibration and external pulling forces to prevent accidental disconnection, significantly improving installation, maintenance, and equipment debugging efficiency.

With IP67 protection rating, the connector features a fully enclosed sealing structure with custom waterproof rubber ring, providing comprehensive waterproof and dustproof capabilities. It completely blocks dust intrusion and remains functional when immersed in 1m water for 30 minutes, easily handling harsh conditions including rain wash, moisture condensation, and sand dust intrusion, thereby reducing risks of short circuits and poor contact.

Material selection prioritizes performance and durability: conductors use high-conductivity oxygen-free copper with tin-plated anti-oxidation treatment to reduce transmission loss and heat generation for 15A/5A dual-current requirements; the housing is made of high-insulation grade engineering plastic with anti-aging, impact-resistant, and lightweight properties, capable of withstanding long-term outdoor or industrial environment exposure and extending product service life. Widely used in small automation equipment, outdoor sensors, portable instruments, security monitoring terminals, and small new energy equipment, providing all-weather connection reliability for stable equipment operation.

Technical Specifications

Electrical Parameters

Number of Poles	2+4 pin waterproof connector
Current Rating	15+5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Product Design

Frequently Asked Questions

Q1: Who is responsible for customs clearance? Do you provide necessary documents?

A: We provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

Q2: Can I pay after receiving the goods?

A: For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.

Q3: How can I get samples?

A: We are pleased to offer samples, with freight costs covered by the customer. Please provide your courier account number and detailed address, and we will dispatch samples immediately.

Q4: How do I place an order? What is the process?

A: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.
