Name: M19 Outdoor Waterproof Connector Manufacturer 3 Pin 9 Pin Gold Plated Quick Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Casa Produtos Soquete impermeável da tomada

M19 Outdoor Waterproof Connector Manufacturer 3 Pin 9 Pin Gold Plated Quick Connector

Detalhes do produto:

Lugar de origem:	China
Marca:	Ulinkcon
Certificação:	CE/Rohs
Número do modelo:	M19

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	Negociação
Preço:	Negociável
Detalhes da embalagem:	Caixa
Tempo de entrega:	5 a 8 dias úteis
Termos de pagamento:	T/T, D/A, D/P, MoneyGram, L/C
Habilidade da fonte:	100000 pares por mês

Contato

Descrição de produto detalhada

Número de pinos:	3+9 PIN	Atual:	15A
Classificação à prova d'água:	IP67	Faixa de temperatura:	-40℃~+105℃
Material:	Nylon	Material de contato:	Latão banhado a ouro
Aplicativo:	Linhas de produção automatizadas	Material de vedação:	Anel de vedação à prova d'água
Destacar:	M19 waterproof quick connector , 3 pin gold plated connector , outdoor waterproof plug socket

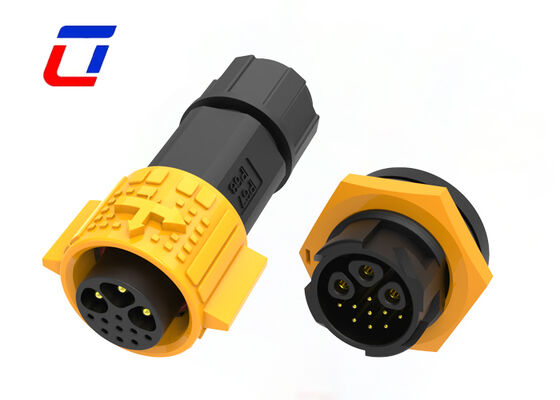

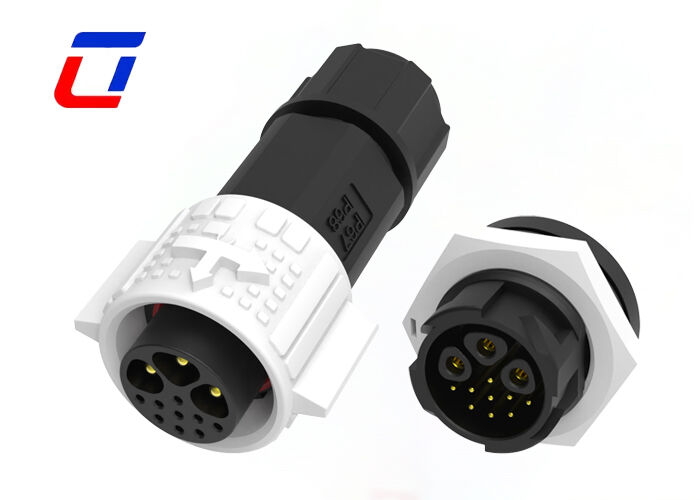

M19 3+9 Pin Waterproof Connector Self Locking Cable To Board Connector

Product Overview

Quick Release Round Connector M19 3+9 Pin OEM Waterproof 300V Connector

Core Configuration & Customization

The M19 3+9 Pin Quick-Disconnect OEM Waterproof Connector is an industrial-grade wire connector that supports customization. It features a separate structure of 3-pin main power and 9-pin data signal, with a rated voltage of 300V. Combined with IP67 waterproof performance and a convenient quick-disconnect mechanism, it is specifically designed for scenarios requiring efficient plugging and unplugging as well as personalized needs.

Key Features

3 Pin & 9 Pin Optional
Supports 3-pin and 9-pin configurations, meeting different power and signal transmission requirements.

Gold Plated Pins
Gold-plated contact pins ensure excellent conductivity, low resistance, oxidation resistance and long service life.

Quick Connect Structure
Quick locking and plug-and-play design, enabling fast installation and high connection efficiency.

IP67 Waterproof Performance
High waterproof and dustproof grade, suitable for outdoor lighting, monitoring and industrial equipment.

Professional Manufacturer Supply
Stable quality, mass production capability, ideal for industrial and outdoor engineering applications.

Technical Specifications

Product Type Features

Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit

Electrical Characteristics

Number of Poles	3+9
Current Rating	15A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s

Body Features

Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes

Usage Conditions

Operating Temperature Range	-40°C to 105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
Durability Rating (Cycles)	250, 251
UL Flammability Rating	UL 94V-0

Configuration Options

Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported
OEM/ODM welcome

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Product Dimensions

Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2: Who is responsible for customs clearance? Do you provide necessary documents?

A2: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

A3: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.

etiqueta:

Pessoa de Contato: Miss. Gina

Telefone: +86 075523019434
