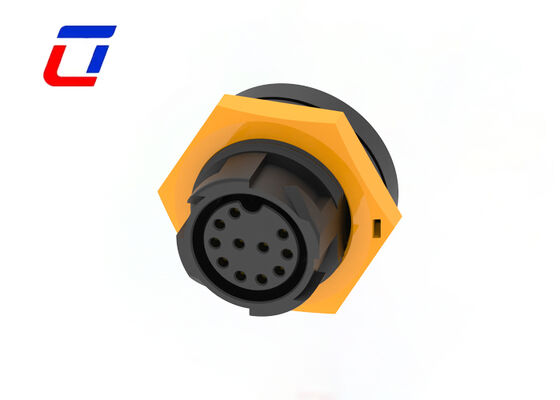

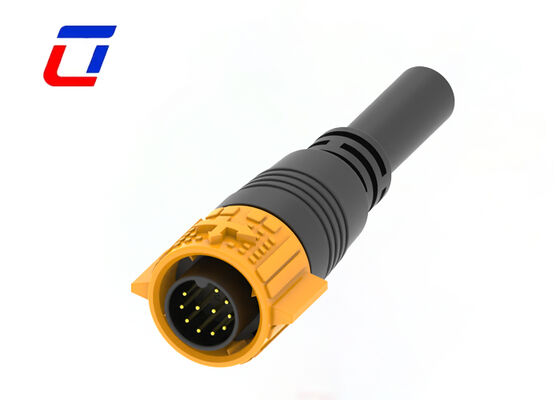

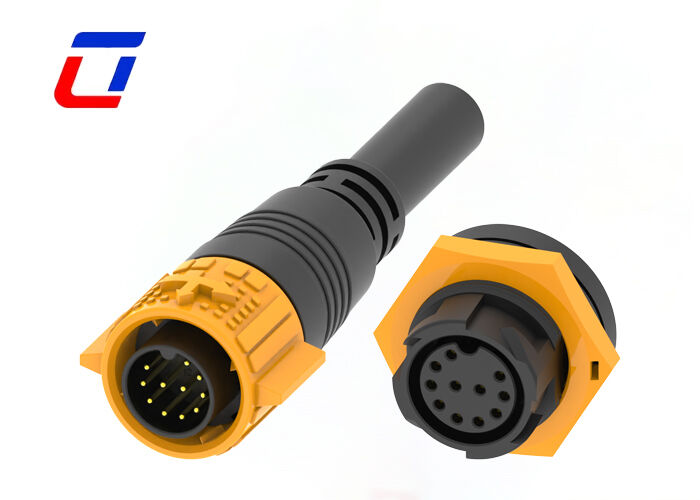

Name: 300V PA66 Wire To Board 11 Pin LED Light Connector TUV M19 Waterproof Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Casa Produtos Soquete impermeável da tomada

300V PA66 Wire To Board 11 Pin LED Light Connector TUV M19 Waterproof Connector

Detalhes do produto:

Lugar de origem:	China
Marca:	Ulinkcon
Certificação:	CE/Rohs/TUV/UL
Número do modelo:	M19

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	Negociação
Preço:	Negociável
Detalhes da embalagem:	1. Saco plástico; 2. Caixa; 3. Conforme as necessidades do cliente
Tempo de entrega:	3 a 6 dias úteis
Termos de pagamento:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Habilidade da fonte:	100.000 pares mensais

Contato

Descrição de produto detalhada

Gênero:	Plugue e soquete macho para fêmea	Alfinete:	11 pinos
Classificação atual:	5A	Material:	Nylon
Nível de proteção:	IP67	Classificação resistente a chamas:	UL94-V0
Destacar:	300V waterproof LED connector , PA66 wire to board connector , TUV M19 11 pin connector

300V PA66 Wire To Board 11 Pin LED Light Connector TUV M19 Waterproof Connector

M19 11Pin IP67 Panel Mount Connector Push Pull Industrial Plug Socket For Data. Professional wire-to-board structure ideal for direct connection between cables and circuit boards in LED lighting systems.

Main Features

Push lock quick release system for easy installation
Multiple pin configurations: 2Pin, 3Pin, 4Pin, 5Pin for Power
Combined power and signal options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly versions: wire to wire and wire to board options
5A current rating for long-term operation
Cable assembly service supported with custom options available
OEM/ODM services welcome

Key Product Advantages

300V Rated Voltage

Safe 300V voltage rating ensures stable and reliable performance for LED lighting and electrical control systems.

High-Grade PA66 Material

Made of high-strength PA66 engineering plastic with excellent heat resistance, insulation, anti-aging properties and long service life.

11-Pin Multi-Channel Design

11-pin configuration provides sufficient channels for multi-signal and power transmission in LED lighting systems.

Wire-to-Board Connection

Professional wire-to-board structure ideal for direct connection between cables and circuit boards, ensuring stable and convenient installation.

TUV Certified Quality

TUV certified for safety and quality, meeting strict international industrial and lighting standards.

M19 Waterproof Connector

IP67 waterproof and dustproof performance makes it suitable for outdoor LED lights and harsh working environments.

Electrical Parameters

Number of Poles	11Pin
Current Rating	5A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application Industries

Growth Lights

Communications Application

Product coding machines

Inventory product coding

Inkjet systems

Solar System

Industrial inkjet equipment

Electric power equipment

Laboratory forensic & pathology equipment

Communications equipment

Heavy machinery

Design Specifications

Frequently Asked Questions

How do you guarantee product quality?

We implement strict quality control throughout the production process: raw material inspection, in-line testing, and final sampling inspection. All products come with a 12-month warranty against manufacturing defects.

How to buy your products?

You need to provide the following specifications:

Confirm Current Rating and Number of Contacts
Confirm Assembly style
Confirm Cable Wire gauge
Confirm Cable Length and Material

How can I get samples?

We are pleased to offer samples for evaluation. The freight cost should be covered by the customer. Please provide your courier account number and detailed shipping address, and we will dispatch samples immediately.
