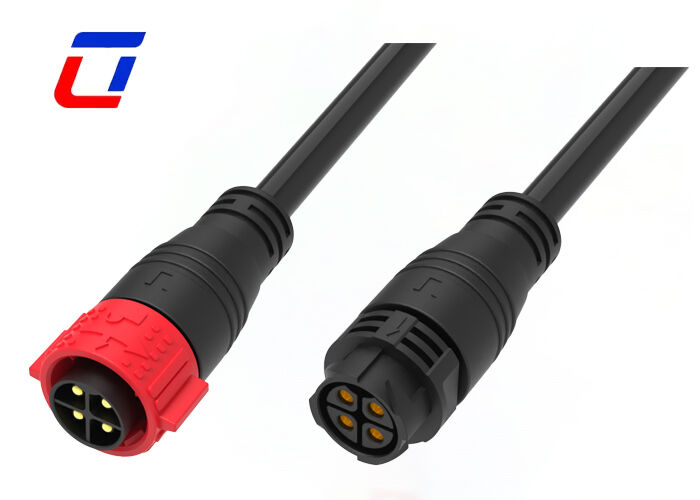

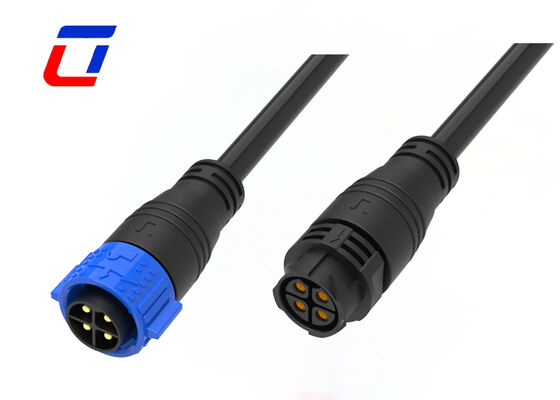

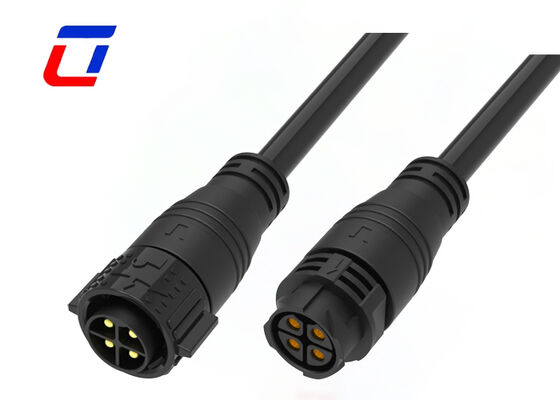

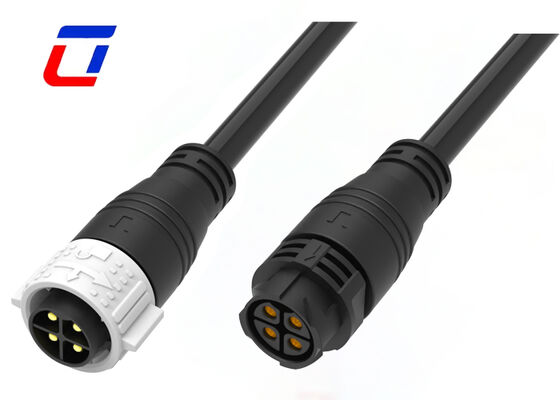

Name: M25 4 Pin 50A Industrial Waterproof Power Connector IP67 Molded Cable Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Casa Produtos Conector impermeável exterior

M25 4 Pin 50A Industrial Waterproof Power Connector IP67 Molded Cable Connector

Detalhes do produto:

Lugar de origem:	China
Marca:	Ulinkcon
Certificação:	CE/Rohs/UL
Número do modelo:	M25

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	Negociação
Preço:	Negociável
Detalhes da embalagem:	Carton de exportação de alta qualidade
Tempo de entrega:	3 a 6 dias úteis
Termos de pagamento:	T/T, D/A, D/P, MoneyGram, L/C
Habilidade da fonte:	100000 pares por mês

Contato

Descrição de produto detalhada

Número de pinos:	Potência de 4 pinos	atual:	50A
Nível de proteção:	IP67	Material de contato:	Latão banhado a ouro
Material:	Nylon	Classificação resistente a chamas:	UL94-V0
Destacar:	M25 4 pin waterproof connector , 50A industrial power connector , IP67 molded cable connector

50A Waterproof IP67 Connectors M25 4 Pin Wire To Wire Power Connector

The M25 4Pin 50A industrial waterproof power connector adopts an integrated molded cable structure, which effectively enhances overall tightness and structural stability compared with traditional assembled connectors. Designed with a 4-pin integrated conductive layout, it supports continuous and stable 50A high-current transmission for industrial high-power outdoor power supply scenarios.

Quick Details of IP67 Waterproof Connector

50A High Current Capacity for Stable Industrial Power Supply: Equipped with thickened high-purity copper conductive pins and a standardized 4-pin layout, the connector features low conductive loss and low heat generation. It supports long-term stable 50A high-current output without voltage drop or overheating, fully meeting the continuous power supply requirements of various industrial high-power equipment.
Integrated Molded Construction for Superior Tensile & Bending Resistance: The cable and connector are integrally molded in one piece with seamless connection, completely avoiding cracking, wire loosening and water leakage common in spliced connectors. The flexible molded cable resists frequent bending and pulling, maintaining structural integrity and extending service life in complex working conditions.
IP67 Full Sealing Protection for All-Weather Industrial Use: Adopting multi-layer composite sealing and integral molding technology, the connector achieves full-range tight protection. It effectively blocks rainwater, dust, moisture and oil contamination from entering internal circuits, preventing electrical failures in open-air operation, humid workshops and harsh outdoor equipment cabins.
Industrial-Grade Weather & Aging Resistance: The tough flame-retardant engineering housing delivers excellent impact resistance, compression resistance and wide-temperature tolerance from -40℃ to +105℃. It features outstanding UV resistance, anti-aging and anti-corrosion performance, adapting to long-term outdoor exposure, rain, snow and salt spray environments.

Main Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin and 2+20Pin available
Field assembly version: both wire to wire and wire to board options
High current rated waterproof connector suitable for up to 50A continuous operation
Cable assembly service supported with custom options available
OEM/ODM services welcome

Electrical Parameters

Number of Poles	4Pin waterproof connector
Current Rating	50A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Operation Parameters

Voltage Rating	600VAC max
Current Rating	50A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max Cable Cross Section Area	0.5mm² ~ 6.0mm²

Production Dimension

More Technical Details

Frequently Asked Questions

What is rated voltage?

Rated voltage, also known as operating voltage, depends on the connector insulation material and spacing between contact sizes. Some components may not function properly below their rated voltage.

How do I place an order? What is the process?

The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
