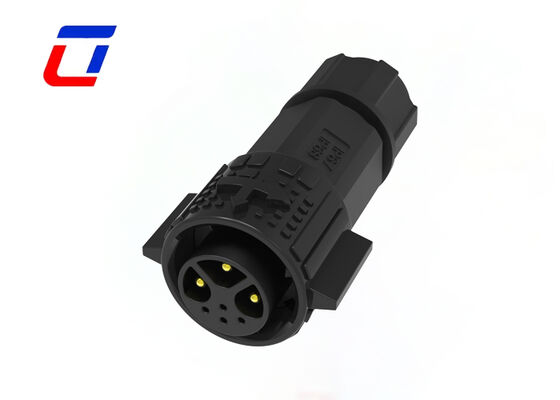

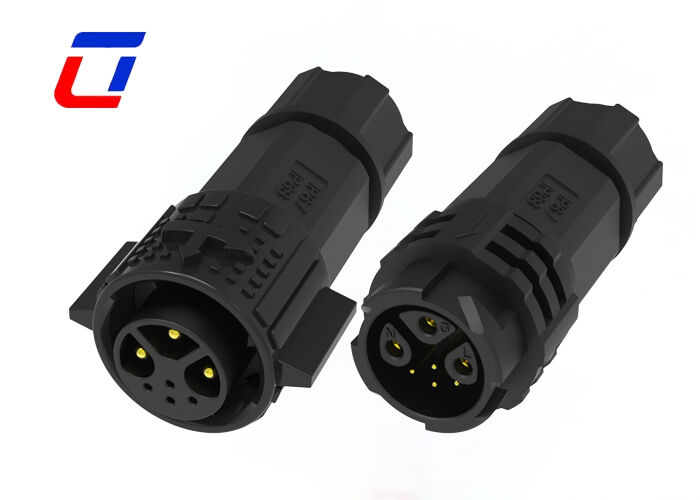

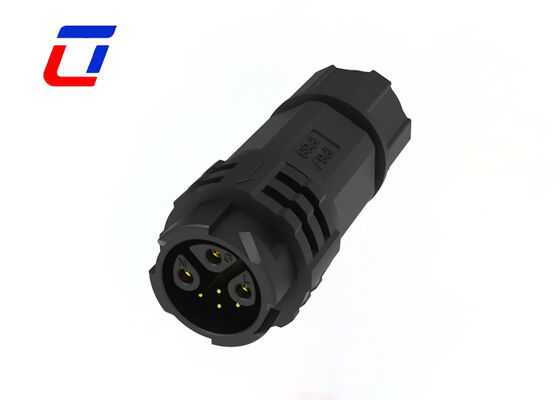

Name: Wire Quick Disconnect Connectors M19 3+4 Pin Waterproof 300V Connector OEM
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Casa Produtos Conector impermeável do diodo emissor de luz

Wire Quick Disconnect Connectors M19 3+4 Pin Waterproof 300V Connector OEM

Detalhes do produto:

Lugar de origem:	China
Marca:	Ulinkcon
Certificação:	CE/Rohs/TUV/UL
Número do modelo:	M19

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	Negociação
Preço:	Negociável
Detalhes da embalagem:	1Saco de plástico;2. Cartão;3.Segundo as exigências do cliente
Tempo de entrega:	3 a 6 dias úteis
Termos de pagamento:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Habilidade da fonte:	100000 pares Montly

Contato

Descrição de produto detalhada

Tensão nominal:	300V	Classificação atual:	15+5A
Tipo de conector:	Conector rápido	ALFINETE:	3+4 pinos
Material:	Nylon	Nível de proteção:	IP67
Destacar:	M19 waterproof quick disconnect connector , 3+4 pin waterproof LED connector , 300V waterproof OEM connector

Wire Quick Disconnect Connectors M19 3+4 Pin Waterproof 300V Connector OEM

Product Overview

Outdoor Waterproof Connector M19 3+4 Pin IP67 Waterproof Connector Wire To Wire

Key Features

IP67 deep waterproof and dustproof protection with double sealing gaskets and tight interface design. Can be immersed in 1-meter-deep water for 30 minutes while maintaining stable performance. Ideal for harsh outdoor environments including heavy rain, sand, dust, and condensation.

Wire-to-wire exclusive design with high-conductivity materials for minimal contact resistance and reduced power/signal transmission loss. Enhanced connection points provide excellent anti-pulling and anti-vibration performance.

Foolproof installation with clear docking guide marks and manual connection/locking capabilities. No professional tools required, reducing construction and maintenance costs.

Main Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Technical Specifications

Electrical Parameters
Number of Poles	3+4Pin
Current Rating	15A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.
Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Growth Lights
Communications Application
Product Coding Machines
Inventory Product Coding
Inkjet Systems
Solar System
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Operation Parameters

Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Specifications

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: How do I place an order? What is the process?

A: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.

Q: How can I get samples?

A: It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.

Q: Can I pay after receiving the goods?

A: For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.
