Name: M25 5 Pin Electrical Wire To Wire Connectors 300V Round Waterproof Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Casa Produtos conector de cabo impermeável

M25 5 Pin Electrical Wire To Wire Connectors 300V Round Waterproof Connector

Detalhes do produto:

Lugar de origem:	China
Marca:	Ulinkcon
Certificação:	CE/Rohs
Número do modelo:	M25

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	Negociação
Preço:	Negociável
Detalhes da embalagem:	Carton de exportação de alta qualidade
Tempo de entrega:	3 a 6 dias úteis
Termos de pagamento:	T/T, D/A, D/P, MoneyGram, L/C
Habilidade da fonte:	100000 pares por mês

Contato

Descrição de produto detalhada

Número de pinos:	5 pinos	Tensão nominal:	300V
Gênero:	Masculino / Feminino	cor:	Verde Azul Vermelho
Nível de proteção:	IP67	Classificação resistente a chamas:	UL94-V0
Destacar:	5 pin waterproof wire connector , 300V round electrical connector , M25 waterproof cable connector

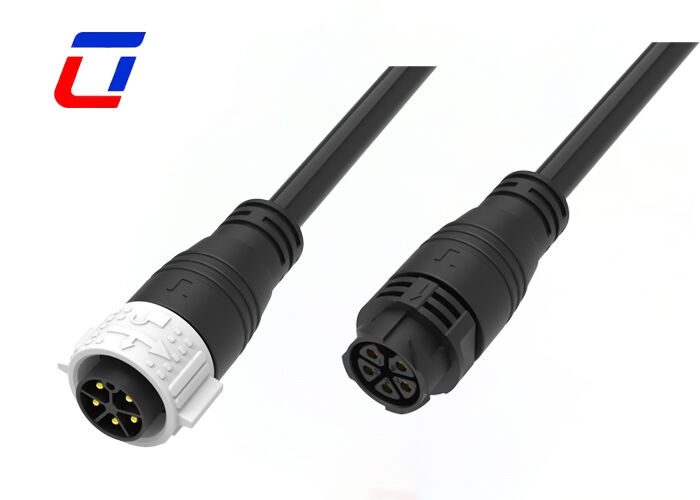

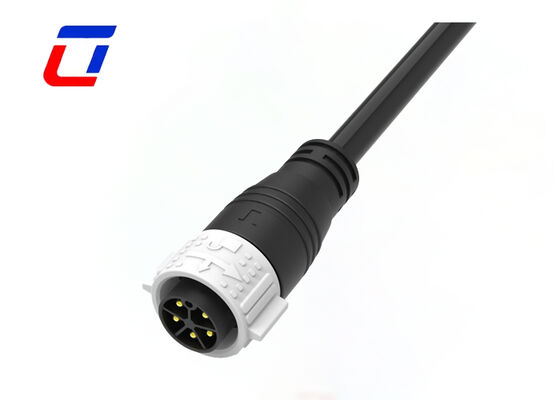

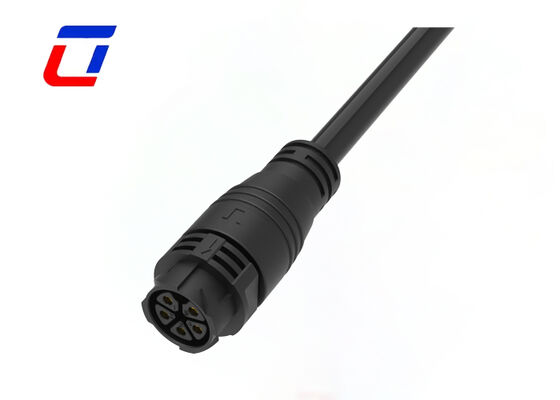

M25 5 Pin Electrical Wire To Wire Connectors 300V Round Waterproof Connector

Product Overview

5 Pin Industrial Waterproof Power Connector M25 Cable Push Lock Male To Female

Tailored for diverse power application scenarios, this connector model comes with an intuitive push-lock system for effortless operation. Insert the connector and it will engage the lock automatically in a split second. You can choose between screw terminals and soldering terminals according to your needs.

Thanks to the screw terminal configuration, no soldering is necessary during installation. Field assembly can be finished in just a few minutes, enabling you to create custom waterproof connection cables with ease.

Additionally, the connector's precisely dimensioned contact pins make it a great pick for applications that demand soldered wire connections.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin and 2+20Pin available
Field assembly version: both wire to wire and wire to board options
High current rated waterproof connector good choice up to 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters

Number of Poles	5Pin waterproof connector
Current Rating	20A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Operation Parameters

Voltage Rating	600VAC max
Current Rating	30A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max Cable Cross Section Area	0.5mm² ~ 6.0mm²

Production Dimension

More Technical Details

Frequently Asked Questions

How can I get samples?

It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.

What is your Minimum Order Quantity (MOQ)?

The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation.

How to choose the suitable connector?

You need to do as followings:

Confirm Current Rating and Number of Contacts
Confirm Assembly style need to pre-cable or not. If needed, then confirm the next
Confirm Cable gauge
Confirm Cable Length and Material

What payment methods do you accept?

We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.
